VTL Machines
YOUJI 2500- ATC+C-II-APC
Specifications:
| Controller | Fanuc18i |
| Chuck Ø | 2.5 m |
| Swing Ø (X axis) | 3 m |
| RAM Travel (Z Axis) | 1.6 m |
| Max.Work piece height | 2 m |
| C Axis | 0.001° |
| Turning Height | 2.0 m |
| Load Capacity | 15 Ton |
| Tool Type | BT 50 |
| Magazine Capacity | 16 Stations |
| Pallet Type | Twin |
HEYCO JUNGENTHAL
Specifications:
| Controller | Fagor |
| Chuck Ø | 2.0 m |
| Swing Ø Max | 2.2 m |
| Turning Height | 1.7 m |
| Z Axis Travel | 1.1 m |
| Turret | 4 Tools |
| Load Capacity | 10 Ton |
| Special Features | Bore Grinding |
HONOR V-10D
Specifications:
| Controller | Fanuc 18i-TB |
| Chuck Ø | 1.0 m |
| Swing Ø Max | 1.2 m |
| Turning Height | 0.75 m |
| Load Capacity | 1 Ton |
| Magazine Capacity | 12 Stations |

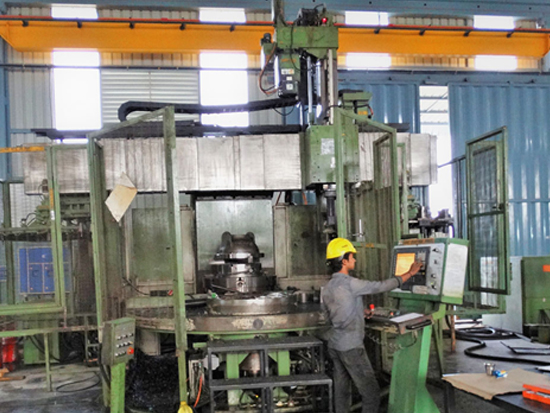

MARIO CARNAGHI
Specifications:
| Controller | Siemens 840D |
| Chuck Ø | 1.0 m |
| Swing Ø Max | 1.0 m |
| Turning Height | 1.0 m |
| C Axis | 0.001 ° |
| Load Capacity | 1 Ton |
| Pallet Type | Twin |
| Tool Type | BT 50 |
| No. of Magazine | 2 |
DOOSAN PUMA 600LM
Specifications:
| Controller | Fanuc 32i |
| Chuck Ø | 0.6 m |
| Turning Ø | 0.8 m |
| Swing Ø Max | 0.85 m |
| C Axis | 0.001 ° |
| Turning Length | 3.5 m |
| Tool Type | H 80 |
| Magazine Capacity | 12 Stations |
| No. of machines | 2 |
